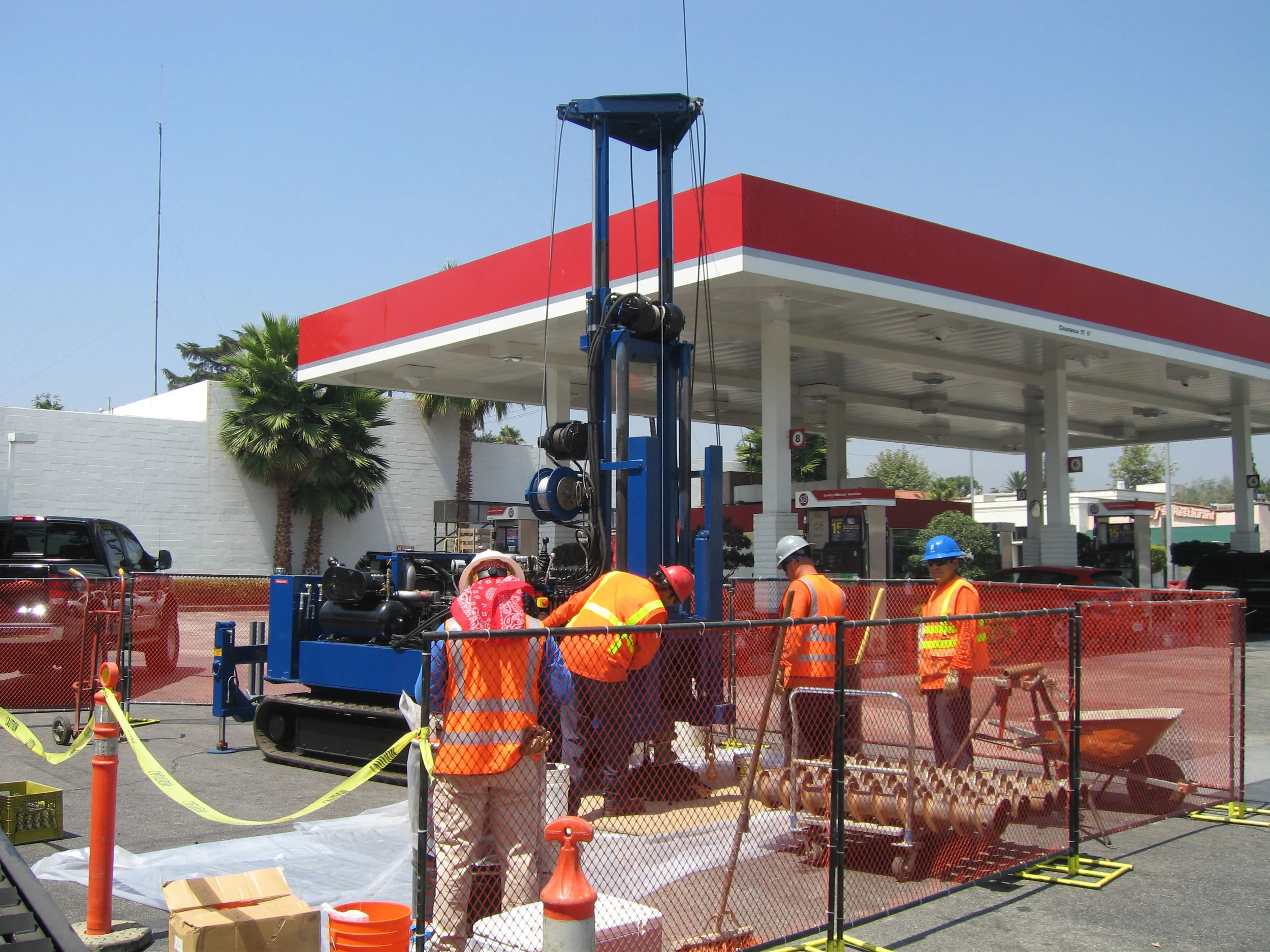

High Torque Rubber Track Mounted Limited Access Rig
Key Specs
Rig weight: approximately 14,000 lbs
Rig width: 6’ 6”
Rig height mast down: 8’
Rig height mast up
fully retracted 12’ 6”
Rig height mast up
fully extended 18’
Hollow Stem Auger/Mud/Air Rotary Capabilities
This rig has more torque and a built frame to support deeper drilling efforts.
Tier 3 QSB6 Cummins Engine.
Advanced cool running quieter low emissions powerplant.
Heavy duty tower and frame built for extreme drilling conditions.
Capable of spinning up to 18” OD Hollow Stem Augers.
Enough power to install wells in excess of 200 ft bgs.
More pullback than most truck mounted drill rigs.
Hydraulic telescoping tower capable of drilling under 12’6” and extending up to 18’.
Four hydraulic leveling jacks for stabilizing rig on uneven surfaces.
Air compressor on rig allows for use of air tools and for pressure grouting
Two coated 75 gallon water tanks and Moyno 3L6 water pump mounted on rig.
Auger rack capable of holding up to 60 ft of 4 ¼” ID augers.
Automatic hammer and wireline slide hammer sampling capabilities.
Discrete depth groundwater sampling capabilities.
Separated drill/rubber track controls for added safety.
Small footprint ideal for active sites.
Single unit tractor with stakebed for materials and trailer combination means less vehicles onsite.
High temperature exhaust tubing and fans available for indoor work.
